The XH Component

The XH component was designed for human malaria epidemiology, defined in a narrow sense to include exposure, infection dynamics, immunity, disease, infectiousness, diagnostics and detection. In the broader sense, human malaria epidemiology also includes malaria transmission dynamics, but these aspects are handled by other parts of ramp.xds.

The XH component also handles models for the demography, infection dynamics, and immunity for vertebrate hosts other mosquito-borne diseases.

A library of XH modules can be found in ramp.library.

This vignette takes a deep dive into the design and structure of the XH component. It is useful for anyone who wants to learn more about how the code works.

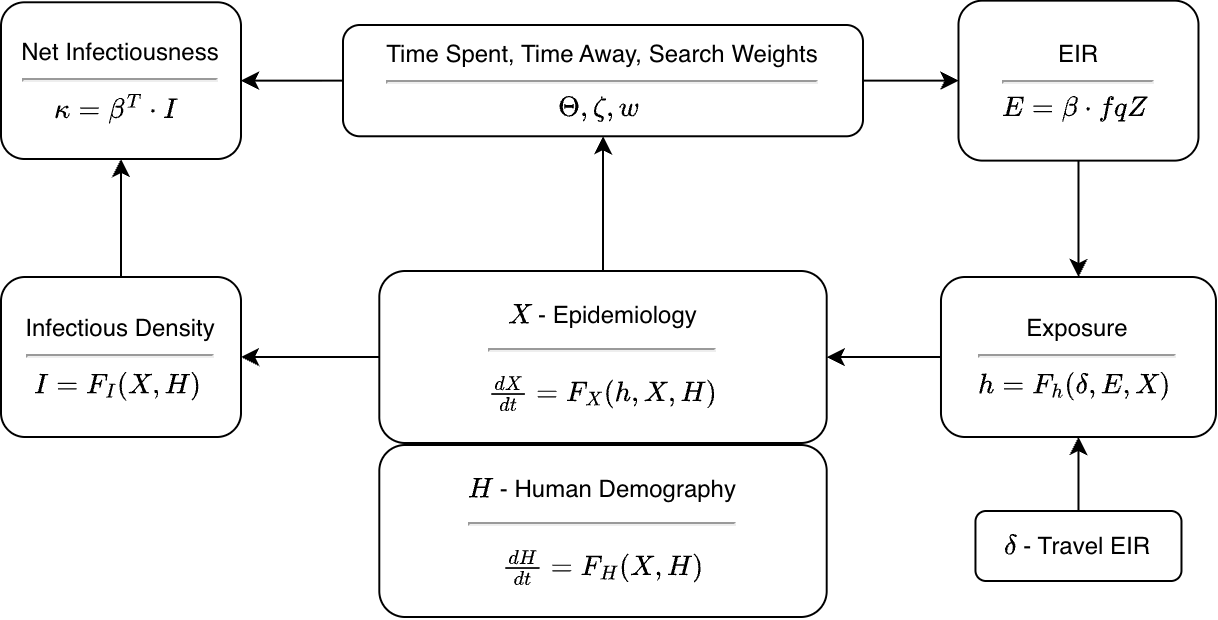

Overview

The XH component handles demography and epidemiology. The software was designed to handle the epidemiology of Plasmodium falciparum in a human population, but the interface has the capability of handling other models for parasites and pathogens in human or vertebrate host populations.

The interface handles malaria epidemiology in a narrow sense: it includes exposure, infection, disease, immunity, infectiousness, and diagnostics and detection. In the broad sense, malaria epidemiology includes transmission dynamics and control, but these are handled by other parts of the model.

Each XH module is defined by:

An X component - disease dynamics
- $X$: a state space describing infection and immune states, and possibly other variables
- dynamics: a system of equations describing the state transitions
- infectivity: a function $F_b(X)$ to compute partial immunity
- infectiousness: a function $F_I(X)$ describing the effective infectious density
An H component - demography
- births: a popualtion birth rate, $F_B(t, H)$
- deaths & etc. matrix describing morality and possibly aging, migration, and stratum dynamics

Since the X component is embedded in the H component, the two processes are handled together.

The X Component

Models for disease dynamics are developed around a general notion of exposure defined by two metrics: daily entomological inoculation rates (dEIR or $E$) and either

the daily force of infection (dFoI or $h$), the hazard rate for infection for humans / hosts who are susceptible to infection.
the daily attack rate (dAR or $1-e^{-h}$), the daily probability of infection for humans / hosts who are susceptible to infection.

Some of X component is handled in the interface that translates local dEIR into a measure of the total dFoI.

Disease dynamics are specified by a function:

for systems of differential equations, dXHdt requires the dFoI and computes the derivatives, denoted $d X/dt$ and $d H/dt.$
for discrete time systems Update_XHt requires the dAR and updates the states, either $X_{t+1} = X_t + \Delta X$ and $H_{t+1} = H_t + \Delta {H}.$

All XH modules must include a function that computes the infectious density $I = F_I(X, H),$ where $I/H$ is the fraction of bites that would infect a perfectly competent mosquito.

All XH modules must include a function that computes true prevalence $x$, from the states, $x=F_x(X, H)$.

Malaria models must include functions that compute predicted observed prevalence by three diagnostic methods: by light microscopy, by rapid diagnostic test, and by PCR. If the functions computing the predicted observed prevalence by various diagnostics are not computable, not relevant, or if they are a linear function of the true prevalence, then this is reported as part of the skill set.

All models should include a port for mass treatment: terms to handle mass drug administration or mass screen and treat are designed into some modules and turned off by default. The capability to handle mass treatment is reported as part of the the skill set.

The H Component

The H component provides the ecological / demographic context for disease dynamics. A large number of models has been developed that assumes human / host population size is static. In ramp.xds, a modules either:

handle dynamically changing populations, and
- the equations handle demographic changes
- a constant population density model by default;
OR report that demographic change is not part of its skill set

Models in ramp.xds (and in the satellite package ramp.library) follow a convention in modeling demographic changes. If had $N_X$ mutually exclusive and collectively exhaustive states, the modules implement $N_X-1$ equations for the state variables. The compartment not computed is the class that receives newborns, denoted ${X}_0$ (or one if these, if two or more classes get newborns.)

These models generally use $H$ to denote the human / host population density, and the models are formulated to handle demography. Let $B(t, H)$ denote a population birth rate. Mortality and aging are handled by the demographic matrix, denoted $D.$ The models assume that $H$ could be a vector, so $D$ is a matrix: the diagonal includes per-capita death rates. For differential equations, the models compute:
% \[\frac{dH}{dt} = B(t) - D \cdot H - F_\mu(X)\] where $F_\mu(X)$ is a set of terms describing disease-induced mortality.

The matrix $D$ is also applied to every state variable:

\[\frac{d X_i}{dt} = F_i({X}) - {D} \cdot {X}_i\] The value of ${X}_0$ is computed and assigned a name using:

\[X_0 = H - \sum_{i>0} X_i.\]

By default, the software sets $B = D = F_\mu(X) = 0;$ models with non-trivial demographic processes are handled as an advanced setup option.

The demographic operator can also be modified to handle other dynamical transitions among classes, which is handled through models for cohort dynamics and .

Required Functions

Each XH module includes 19 required functions and some optional ones.

Some of these required functions are S3 class functions in human-XH-interface.R. Others are defined for each module.

One good example is the SIS module, posted in the ramp.xds github repository human-XH-SIS.R.

The required functions deal with various tasks for model building and solving: constructing the XH model object; the dynamics; the parameters; the variables and their initial values; computing terms and standard outputs; and consistency checks. Optional outputs include other metrics; functions to compute steady states; and module specific functions to visualize the outputs.

Each module is defined by a string, generically called Xname, that identifies the module: e.g. SIS.

Dynamics

The dynamics are defined by at least one of the following is required, depending on whether the model family is a system of differential equations or a discrete time system:
- dXHdt.Xname :: differential equations are defined by a function that computes the derivatives. In ramp.xds these are encoded in a function called dXHdt. The function is set up to be solved by deSolve::ode or deSolve::dede.
- Update_XHt.Xname :: discrete time systems are defined by the function that updates the state variables in one time step. In ramp.xds these are encoded in a function called Update_XHt that computes and returns the state variables. The forms mimic the ones used for differential equations.

XH Model Object

Each module has a pair of functions that set up a structured list called the XH model object. The object is a list that is assigned to a class that dispatches the S3 functions described below. It is a compound list, where some of the sub-lists are assigned their own class that dispatch other S3 functions.

make_XH_obj_Xname :: returns a structured list called an XH model object:
- the parameter values are stored by name
- class(XH_obj) = Xname
- the indices for the model variables are stored as XH_obj$ix
- the initial values are stored as XH_obj$inits
- ports are added and set to their null values:
  - a function to model the population birth rate
  - a demographic matrix for deaths, aging, and more
  - functions to model mass treatment
- anything else that is needed can be configured here
setup_XH_obj.Xname is a wrapper that calls make_XH_obj_Xname and (for the $i^{th}$ species) attaches the object as xds_obj$XH_obj[[i]]

Parameters

change_XH_pars.Xname changes the values of some parameters. It is designed to be used after setup. New parameter values are passed by name in a list called options.
get_XH_pars.Xname is a utility to inspect the values of the parameters.

Variables

Since the XH component is one of three, a function sets up the indices for all the variables in a model.

Two other functions use those indices: one pulls the variables from the state variable vector $y$; the other one pulls the variables by name from an output matrix returned by xds_solve.

After pulling, both functions return the variables in by name in a list to make it easy to inspect or use.

setup_XH_ix.Xname - is the function that assigns an index to each variable in the model, and stores it as xds_obj$XH_obj[[i]]$ix. The indices are returned as a named list.
get_XH_vars.Xname - retrieves the value of variables from the state variables vector $y$ at a point in time and returns the values by name in a list; the function gets called by dXHdt and by change_XH_inits and it can be useful in other contexts.
parse_XH_orbits.Xname - this function is like get_XH_vars but it parses the matrix of outputs returned by xds_solve.

Initial Values

A set of functions is sets up or changes the initial values for the state variables.

make_XH_inits_Xname - each model must include a function that makes a set of initial values as a named list. This function does not belong to any S3 class, so it can take any form. The function should supply default initial values for all the variables. These can be overwritten by passing new initial values in options.
setup_XH_inits.Xname - is a wrapper, that gets called by xds_setup and that calls make_XH_inits_Xname. The setup options are passed to overwrite default values. The initial values are stored as XH_obj$inits.
change_XH_inits.Xname - a utility to change the initial values.

Dynamical Terms

These functions compute dynamical terms – the outputs passed to an interface.

F_X.Xname - compute the effective infectious density of the vertebrate hosts. This gets computed and passed through the blood feeding and transmission interface to compute $\kappa.$
F_H.Xname - get the human/host population density
F_infectivity.Xname - compute the probability a host will become infected by each infectious bite. This function gets called by the function Exposure, a part of the blood feeding and transmission interface that translates local and travel EIR into an estimated FoI under a model of environmental heterogeneity.

Standard Outputs

Each module must output a few key quantities:

F_prevalence.Xname - compute prevalence
F_ni.Xname - compute net infectiousness (NI) for each stratum. If $F_X \rightarrow X$ and $F_H \rightarrow H$, then $F_{ni} \rightarrow X/H.$ The function gets called after solving, and the NI is attached as a term for inspection and visualization.
HTC.Xname - compute the human transmitting capacity. This is used by functions in ramp.work that compute threshold conditions.

Consistency Checks

Some modules in ramp.xds or ramp.library have been included for various reasons. Not all of those models are capable of being extended. To help users avoid using models in ways that are not appropriate, we developed two function classes:

skill_set_XH.Xname :: describes model capabilities and limitations
check_XH.Xname :: at the end of xds_setup and at the beginning of xds_solve, this function gets run to ensure that some quantities have been properly updated, and to see if anything has been added to a model that is not in its skill set.

Optional Functions

The XH interface also sets up S3 classes for some optional functions, but these might not be appropriate for all models. If a function is not in the skill set of the module, then the limitation should be noted in the documentation of skill_set_XH.Xname with information in the list.

Optional Outputs

For malaria models, built in functions compute prevalence by various diagnostics.

F_pfpr_by_lm.Xname :: output predicted prevalence by light microscopy
F_pfpr_by_rdt.Xname :: output predicted prevalence by rapid diagnostic test
F_pfpr_by_pcr.Xname :: output predicted prevalence by PCR

Steady States

Methods are defined to compute various steady states under static parameter values.

steady_state_X.Xname :: pass the FoI and H and computes steady states for the X component, if appropriate.
steady_state_XH.Xname :: pass the FoI and compute states for the XH component, if appropriate.
steady_state_H.Xname :: compute steady states for the H component, if appropriate.

Visualization

Functions have been developed to plot the standard terms, but each module can define its own method for plotting:

xds_plot_XH.Xname is a wrapper that calls xds_lines_X
xds_lines_XH.Xname defines a default method for plotting orbits
