The MY component was designed to model adult mosquito ecology and infection dynamics.

This vignette takes a deep dive into the design and structure of the MY component. It is useful for anyone who wants to learn more about how the code works.

Overview

The MY component adult mosquito ecology and infection dynamics. We let M describe a state space describing mosquito ecology, and Y an embedded state space describing parasite or pathogen infection dynamics. Since Y is embedded within M, the two processes are handled together.

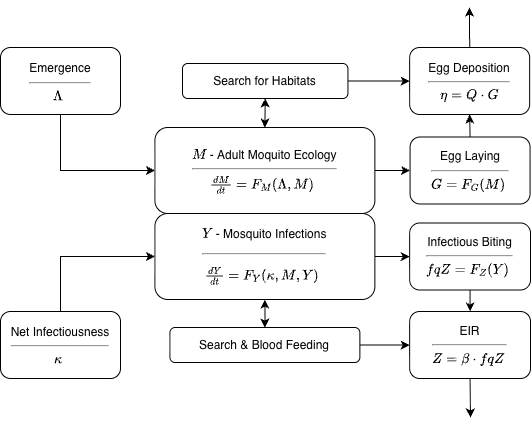

The Y component interacts with X through blood feeding and transmission:

  • All Y components are developed around net-infectiousness, or \(\kappa,\) the probability of becoming infected after blood feeding on a human.

  • Each module must supply a function \(F_Z\) that computes the expected number of infectious bites on humans. This is processed by the XY interface and transformed into the daily EIR for all the XH component strata.

The M component interacts with L through egg laying and emergence.

  • The M component is developed around the net emergence rate of adult mosquitoes, or \(\Lambda.\)

  • Each M component must supply a function \(F_G\) that computes the number of eggs laid by the adult mosquito population in a patch. The ML-interface determines how the eggs are apportioned among all the habitats in a patch.
    A function dMYdt computes the derivatives for differential equation modules. Update_MYt updates the variables for discrete time systems.

Two important issues for MY components are adult mosquito demography, including mortality and dispersal and the method for handling mosquito bionomics as a baseline that is modified by control

Mosquito Demography

There are some built-in functions to compute a mosquito demographic matrix, \(\Omega,\) and a matrix that computes survival and dispersal through the EIP: \[\Upsilon = e^{-\Omega \tau}\]

For most of these models:: \[\Omega = -g - \sigma + (1-\mu) \sigma K\]

Mosquito Bionomics

The core challenge for implementing mosquito bionomics was how to handle time-varying parameters affected by two or more processes: a baseline value affected by resource availability or weather; and a new value that has been modified by the presence of vector control. This challenge applies to all mosquitoes, whether adult or immature, so it is handled separately: Bionomics.

Required Functions

Each MY module includes XX required functions and some optional ones.

Some of these required functions are S3 class functions in adult-MY-interface.R. Others are defined for each module.

One good example is the SI module, posted in the ramp.xds github repository human-MY-SI.R.

The required functions deal with various tasks for model building and solving: constructing the MY model object; the dynamics; the parameters; the variables and their initial values; computing terms and standard outputs; and consistency checks. Optional outputs include other metrics; functions to compute steady states; and module specific functions to visualize the outputs.

Each module is defined by a string, generically called MYname, that identifies the module: e.g. SI.

Dynamics

  1. The dynamics are defined by at least one of the following is required, depending on whether the model family is a system of differential equations or a discrete time system:

    • dMYdt.MYname :: differential equations are defined by a function that computes the derivatives. In ramp.xds these are encoded in a function called dMYdt. The function is set up to be solved by deSolve::ode or deSolve::dede.

    • Update_MYt.MYname :: discrete time systems are defined by the function that updates the state variables in one time step. In ramp.xds these are encoded in a function called Update_MYt that computes and returns the state variables. The forms mimic the ones used for differential equations.

MY Model Object

Each module has a pair of functions that set up a structured list called the MY model object. The object is a list that is assigned to a class that dispatches the S3 functions described below. It is a compound list, where some of the sub-lists are assigned their own class that dispatch other S3 functions.

  1. make_MY_obj_MYname :: returns a structured list called an MY model object:

    • bionomic parameter values or bionomic parameter objects. In most models, the value of baseline bionomic parameters are functions of time, or exogenous variables that vary with time.

    • class(MY_obj) = MYname

    • the indices for the model variables are stored as MY_obj$ix

    • the initial values are stored as MY_obj$inits

    • anything else that is needed can be configured here

  2. setup_MY_obj.MYname is a wrapper that calls make_MY_obj_MYname and (for the \(i^{th}\) species) attaches the object as xds_obj$MY_obj[[i]]

Parameters

  1. change_MY_pars.MYname changes the values of some parameters. It is designed to be used after setup. New parameter values are passed by name in a list called options.

  2. get_MY_pars.MYname is a utility to inspect the values of the parameters.

Variables

Since the MY component is one of three, a function sets up the indices for all the variables in a model.

Two other functions use those indices: one pulls the variables from the state variable vector \(y\); the other one pulls the variables by name from an output matrix returned by xds_solve.

After pulling, both functions return the variables in by name in a list to make it easy to inspect or use.

  1. setup_MY_ix.MYname - is the function that assigns an index to each variable in the model, and stores it as xds_obj$MY_obj[[i]]$ix. The indices are returned as a named list.

  2. get_MY_vars.MYname - retrieves the value of variables from the state variables vector \(y\) at a point in time and returns the values by name in a list; the function gets called by dMYdt and by change_MY_inits and it can be useful in other contexts.

  3. parse_MY_orbits.MYname - this function is like get_MY_vars but it parses the matrix of outputs returned by xds_solve.

Initial Values

A set of functions is sets up or changes the initial values for the state variables.

  1. make_MY_inits_MYname - each model must include a function that makes a set of initial values as a named list. This function does not belong to any S3 class, so it can take any form. The function should supply default initial values for all the variables. These can be overwritten by passing new initial values in options.

  2. setup_MY_inits.MYname - is a wrapper, that gets called by xds_setup and that calls make_MY_inits_MYname. The setup options are passed to overwrite default values. The initial values are stored as MY_obj$inits.

  3. change_MY_inits.MYname - a utility to change the initial values.

Dynamical Terms

These functions compute dynamical terms – the outputs passed to an interface.

  1. F_fqZ.MYname -

  2. F_fqM.MYname -

  3. F_eggs.MYname -

Standard Outputs

Each module must output a few key quantities:

  1. F_prevalence.MYname - compute prevalence

  2. F_ni.MYname - compute net infectiousness (NI) for each stratum. If \(F_X \rightarrow X\) and \(F_H \rightarrow H\), then \(F_{ni} \rightarrow X/H.\) The function gets called after solving, and the NI is attached as a term for inspection and visualization.

  3. HTC.MYname - compute the human transmitting capacity. This is used by functions in ramp.work that compute threshold conditions.

Consistency Checks

Some modules in ramp.xds or ramp.library have been included for various reasons. Not all of those models are capable of being extended. To help users avoid using models in ways that are not appropriate, we developed two function classes:

  1. skill_set_MY.MYname :: describes model capabilities and limitations

  2. check_MY.MYname :: at the end of xds_setup and at the beginning of xds_solve, this function gets run to ensure that some quantities have been properly updated, and to see if anything has been added to a model that is not in its skill set.

Optional Functions

The MY interface also sets up S3 classes for some optional functions, but these might not be appropriate for all models. If a function is not in the skill set of the module, then the limitation should be noted in the documentation of skill_set_MY.MYname with information in the list.

Steady States

Methods are defined to compute various steady states under static parameter values.

  • steady_state_M.MYname :: pass the emergence rate of adult mosquitoes and compute steady states for the M component.

  • steady_state_MY.MYname :: pass the emergence rate of adult mosquitoes and net infectiousness, and compute the steady states for the MY component.

  • steady_state_Y.MYname :: pass adult mosquito population density and net infectiousness, and compute the steady states for the Y component.

Visualization

Functions have been developed to plot the standard terms, but each module can define its own method for plotting:

  • xds_plot_MY.MYname is a wrapper that calls xds_lines_X

  • xds_lines_MY.MYname defines a default method for plotting orbits
