The Ross-Macdonald adult mosquito model fulfills the generic interface of the adult mosquito component.

Here, we use a Ross-Macdonald model based on a model first published in 1982 by Joan Aron and Robert May1. It includes state variables for total mosquito density \(M\), infected mosquito density \(Y\), and infectious mosquito density \(Z\). Because of the interest in parity, the model has been extended to include a variable that tracks parous mosquitoes, \(P\).

Differential Equations

Delay Differential Equations

These equations are naturally implemented by exDE::dMYZdt.RM_dde, but they can also be implemented in a closely related set of odes using exDE::dMYZdt.RM_ode (see below).

\[ \dot{M} = \Lambda - \Omega\cdot M \] \[ \dot{P} = \mbox{diag}(f) \cdot (M-P) - \Omega \cdot P \]

\[ \dot{Y} = \mbox{diag}(fq\kappa) \cdot (M-Y) - \Omega \cdot Y \]

\[ \dot{Z} = e^{-\Omega \tau} \cdot \mbox{diag}(fq\kappa_{t-\tau}) \cdot (M_{t-\tau}-Y_{t-\tau}) - \Omega \cdot Z \]

Recall that the mosquito demography matrix describing mortality and dispersal is given by:

\[ \Omega = \mbox{diag(g)} + \left(I- {\cal K}\right) \cdot \mbox{diag}(\sigma) \]

Ordinary Differential Equations

In the following, the equation are solved by exDE::dMYZdt.RM_ode.

The system of ODEs is the same as above except for the equation giving the rate of change in infectious mosquito density, which becomes:

\[ \dot{Z} = e^{-\Omega \tau} \cdot \mbox{diag}(fq\kappa) \cdot (M-Y) - \Omega \cdot Z \] The resulting set of equations is similar in spirit to the simple model presented in Smith & McKenzie (2004)2. in that mortality and dispersal over the EIP is accounted for, but the time lag is not. While transient dynamics of the ODE model will not equal the DDE model, they have the same equilibrium values, and so for numerical work requiring finding equilibrium points, the faster ODE model can be safely substituted.

Equilibrium solutions

There are two logical ways to begin solving the non-trivial equilibrium. The first assumes \(\Lambda\) is known, which implies good knowledge of mosquito ecology. The second assumes \(Z\) is known, which implies knowledge of the biting rate on the human population. We show both below.

Starting with \(\Lambda\)

Piven \(\Lambda\) we can solve:

\[ M = \Omega^{-1} \cdot \Lambda \] Then given \(M\) we set \(\dot{Y}\) to zero and factor out \(Y\) to get:

\[ Y = (\mbox{diag}(fq\kappa) + \Omega)^{-1} \cdot \mbox{diag}(fq\kappa) \cdot M \] We set \(\dot{Z}\) to zero to get:

\[ Z = \Omega^{-1} \cdot e^{-\Omega \tau} \cdot \mbox{diag}(fq\kappa) \cdot (M-Y) \]

Because the dynamics of \(P\) are independent of the infection dynamics, we can solve it given \(M\) as:

\[ P = (\Omega + \mbox{diag}(f))^{-1} \cdot \mbox{diag}(f) \cdot M \]

Starting with \(Z\)

It is more common that we start from an estimate of \(Z\), perhaps derived from an estimated EIR (entomological inoculation rate). Piven \(Z\), we can calculate the other state variables and \(\Lambda\). For numerical implementation, note that \((e^{-\Omega\tau})^{-1} = e^{\Omega\tau}\).

\[ M-Y = \mbox{diag}(1/fq\kappa) \cdot (e^{-\Omega\tau})^{-1} \cdot \Omega \cdot Z \]

\[ Y = \Omega^{-1} \cdot \mbox{diag}(fq\kappa) \cdot (M-Y) \]

\[ M = (M - Y) + Y \]

\[ \Lambda = \Omega \cdot M \] We can use the same equation for \(P\) as above.


Here we show an example of starting and solving a model at equilibrium. Please note that this only runs this adult mosquito model and that most users should read our fully worked example to run a full simulation.

The long way

Here we set up some parameters for a simulation with 3 patches.

nPatches <- 3
f <- 0.3
q <- 0.9
g <- 1/20
sigma <- 1/10
eip <- 11
nu <- 1/2
eggsPerBatch <- 30

calK <- matrix(0, nPatches, nPatches)
calK[1, 2:3] <- c(0.2, 0.8)
calK[2, c(1,3)] <- c(0.5, 0.5)
calK[3, 1:2] <- c(0.7, 0.3)
calK <- t(calK)

Omega <- make_Omega(g, sigma, calK, nPatches)
Upsilon <- expm::expm(-Omega * eip)

Now we set up the parameter environment with the correct class using exDE::make_parameters_MYZ_RM, noting that we will be solving as an ode.

params <- list(nPatches = nPatches)

params = make_parameters_MYZ_RM(params,
                                g = g, sigma = sigma, calK = calK,
                                f = f, q = q,
                                nu = nu, eggsPerBatch = eggsPerBatch,
                                eip = eip, solve_as = 'ode')

Now we set the values of \(\kappa\) and \(\Lambda\) and solve for the equilibrium values.

kappa <- c(0.1, 0.075, 0.025)
Lambda <- c(5, 10, 8)

Omega_inv <- solve(Omega)

M_eq <- as.vector(Omega_inv %*% Lambda)
P_eq <- as.vector(solve(diag(f, nPatches) + Omega) %*% diag(f, nPatches) %*% M_eq)
Y_eq <- as.vector(solve(diag(f*q*kappa) + Omega) %*% diag(f*q*kappa) %*% M_eq)
Z_eq <- as.vector(Omega_inv %*% Upsilon %*% diag(f*q*kappa) %*% (M_eq - Y_eq))

We use exDE::make_inits_MYZ_RM to store the initial values. These equations have been implemented to compute \(\Upsilon\) dynamically, so we attach Upsilon as initial values:

params = make_inits_MYZ_RM_ode(pars = params,
                             M0 = M_eq, P0 = P_eq, Y0 = Y_eq, Z0 = Z_eq)

We and set the indices with exDE::make_indices.

params$max_ix = 0
params = make_indices(params)
params$nHosts = 0

Then we can set up the initial conditions vector and use deSolve::ode to solve the model. Normally these values would be computed within exDE::xDE_diffeqn. Here, we set up a local version:

y0 = get_inits_MYZ(params, 1)

dMYZdt_local = func=function(t, y, pars, Lambda, kappa, s) {
  pars$Lambda[[s]] = Lambda
  pars$kappa[[s]] = kappa
  list(dMYZdt(t, y, pars, s))

out <- deSolve::ode(y = y0, times = 0:50, dMYZdt_local, parms=params,
                    method = 'lsoda', Lambda = Lambda, kappa = kappa, s=1)
out1 <- out

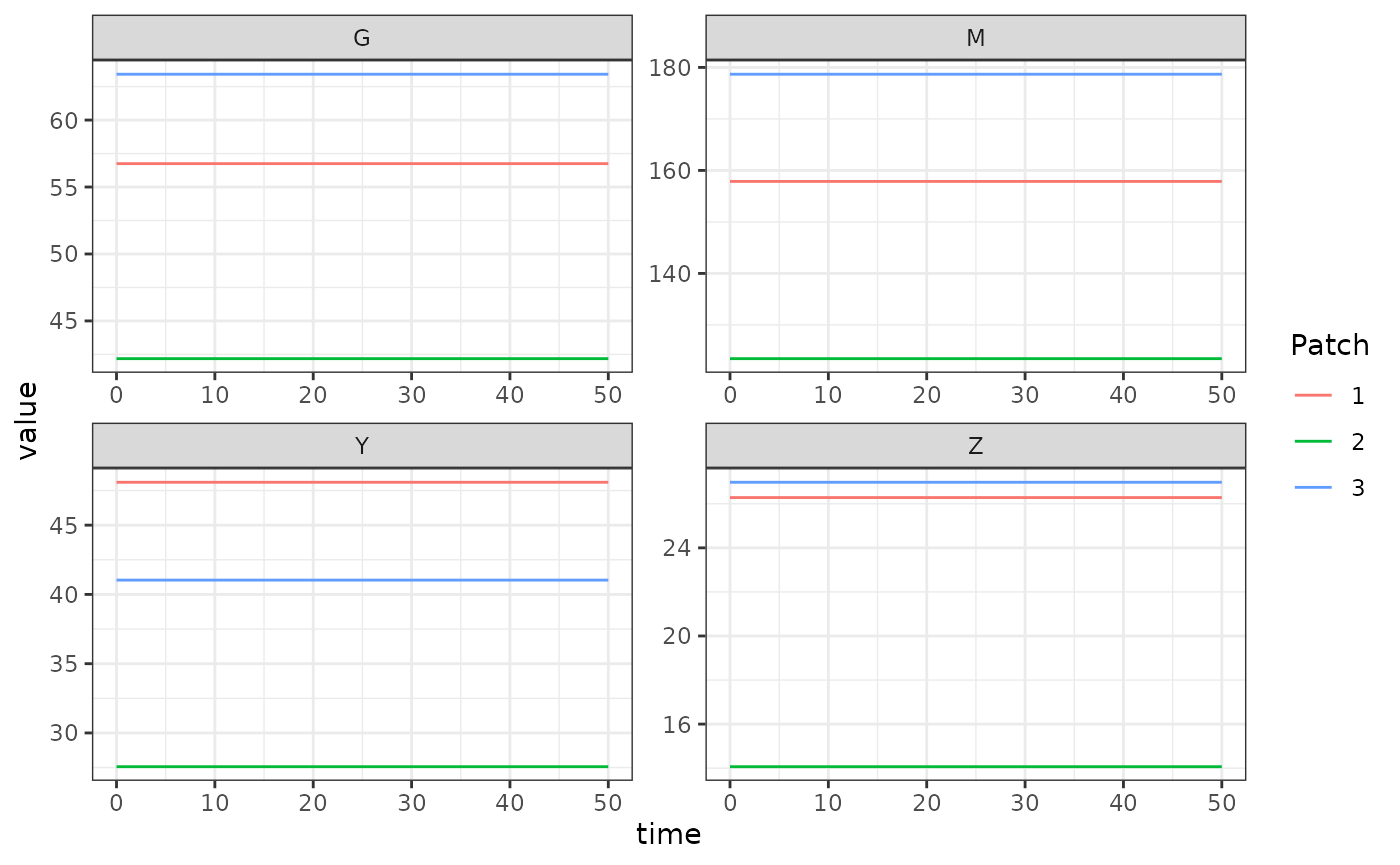

The output is plotted below. The flat lines shown here is a verification that the steady state solutions that we computed above match the steady states computed by solving the equations:

colnames(out)[params$MYZpar$M_ix+1] <- paste0('M_', 1:params$nPatches)
colnames(out)[params$MYZpar$P_ix+1] <- paste0('P_', 1:params$nPatches)
colnames(out)[params$MYZpar$Y_ix+1] <- paste0('Y_', 1:params$nPatches)
colnames(out)[params$MYZpar$Z_ix+1] <- paste0('Z_', 1:params$nPatches)

out <-
out <- melt(out, id.vars = 'time')
out[, c("Component", "Patch") := tstrsplit(variable, '_', fixed = TRUE)]
out[, variable := NULL]

ggplot(data = out, mapping = aes(x = time, y = value, color = Patch)) +
  geom_line() +
  facet_wrap(. ~ Component, scales = 'free') +

Setup Utilities

In the vignette above, we set up a function to solve the differential equation. We hope this helps the end user to understand how exDE works under the hood, but the point of exDE is to lower the costs of building, analyzing, and using models. The functionality in exDE can handle this case – we can set up and solve the same model using built-in setup utilities. Learning to use these utilities makes it very easy to set up other models without having to learn some internals.

To set up a model with the parameters above, we make three list with the named parameters and their values. We also attach to the list the initial values we want to use, if applicable. For the Ross-Macdonald adult mosquito model, we attach the parameter values:

MYZo = list(
  f = 0.3, q = 0.9, g = 1/20, sigma = 1/10,
  eip = 11, nu = 1/2, eggsPerBatch = 30,
  solve_as = "ode",
  M0 = M_eq, P0 = P_eq, Y0 = Y_eq, Z0 = Z_eq

Each one of the dynamical components has a configurable trace algorithm that computes no derivatives, but passes its output as a parameter (see human-trace.R. To configure Xpar, we attach the values of kappa to a list:

Xo = list(kappa =  c(0.1, 0.075, 0.025))

Similarly, we configure the trace algorithm for aquatic mosquitoes (see aquatic-trace.R).

Lo = list(Lambda = c(5, 10, 8))

To set up the model, we call xde_setup with

  • nPatches is set to 3

  • MYZname is set to “RM” to run the Ross-Macdonald model for adult mosquitoes; to pass our options, we write MYZopts = MYZo; and finally, the dispersal matrix calK is passed as calK=calK

  • Xname is set to “trace” to run the trace module for human infection dynamics

  • Lname is set to “trace” to run the trace module aquatic mosquitoes

Otherwise, setup takes care of all the internals:

xde_setup(MYZname = "RM", Xname = "trace", Lname = "trace",
    nPatches=3, calK=calK, membership = c(1:3),
    residence = c(1:3), HPop = rep(1, 3),
    MYZopts = MYZo, Xopts = Xo, Lopts = Lo) -> MYZeg

Now, we can solve the equations using xde_solve and compare the output to what we got above. If they are identical, the two objects should be identical, so can simply add the absolute value of their differences:

xde_solve(MYZeg, Tmax=50, dt=1) -> MYZeg
out2 <- MYZeg$outputs$orbits$deout
#> [1] TRUE
